Hole Diameter 0.5mm Aluminum Baffle IPX3/IPX4 Ingress Protection Testing Hand-Held Spray Nozzle IEC60529 Clause 14.2.3/14.2.4

Name: Hole Diameter 05mm Aluminum Baffle IPX3IPX4 Ingress Protection Testing HandHeld Spray Nozzle IEC60529 Clause 14231424
Brand: PEGO
Price: 700 USD

Hole Diameter 0.5mm Aluminum Baffle IPX3/IPX4 Ingress Protection Testing Hand-Held Spray Nozzle IEC60529 Clause 14.2.3/14.2.4 Manufactures

Brand Name : PEGO

Model Number : IPX34S

Certification : Third-Lab Calibration Certificate

Place of Origin : China

MOQ : 1 set

Price : USD700~USD900

Payment Terms : T/T,Western Union,MoneyGram

Delivery Time : 15 working days

Packaging Details : carton

Standard : IEC60529

Material : brass sprinkler head, aluminum baffle

Hole Diameter : 0.5mm

Hole quantity : 121

Flow : 10L/min±5%

Warranty : 12 months

Contact Now

IEC60529 Clause 14.2.3 and Clause 14.2.4 IPX3 and IPX4 Ingress Protection Testing Hand-Held Spray Nozzle

1. Introduction

The IPX3 and IPX4 Ingress Protecting Tester, named as IPX3 and IPX4 Hand-held Spray Nozzle, is designed and manufactured according to IEC60529, IEC60598-1, GB4208, GB7000.1, GB17761 standards. It is suitable for waterproof testing of outdoor electrical and electronic products in terms of rain and water spray, and for waterproof testing of products by certification and testing agencies and manufacturers. The shower is mainly composed of a brass nozzle, a movable water baffle, a counterweight, a pressure gauge and a stainless steel valve. The back-end water supply system is not covered by this specification.

2. Standard

IEC60529 Degrees of protection provided by enclosures (IP Code) Figure 3

IEC60598-1 Luminaires - Part 1: General requirements and tests

ISO20653 Road Vehicles - Degrees of protection (IP-Code) - Protection of electrical equipment against foreign objects, water and access

3. Parameters

Number of holes	121
Holes position	1 hole at center 2 inner circles of 12 holes at 30⁰ pitch 4 outer circles of 24 holes at 15⁰pitch
Hole diameter	Φ0.5mm
Spray nozzle diameter	102mm
Delivery rate	10L/min±5% (manual adjustment)
Water pressure	50kPa to 150kPa
Material	spray nozzle(brass) Moving shield (aluminum) Hose (stainless steel)

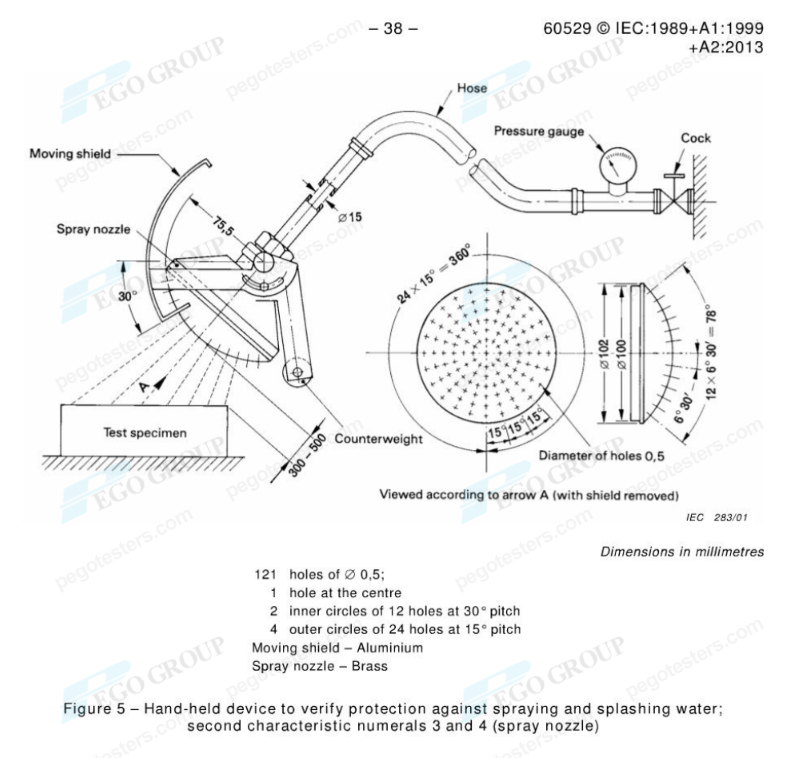

4. Figure
