Brand Name : Pego Electronics
Model Number : PG-ASNZSF2.10
Certification : Third-Lab Calibration Certificate
Place of Origin : China
MOQ : 1
Price : negotiation
Payment Terms : T/T
Supply Ability : 100 set/month
Delivery Time : 15-20 working days
Packaging Details : protective box + carton
Normative standard : AS/NZS 3112 figure 2.10 and clause 2.13.8
Material : brass
Application : for plugs temperature rising test
Quantity : Pin clamping unit for 10A and 15A flat pin plugs*1, Pin clamping unit for 10A round pin plugs *1, pin clamping unit for 20A flat pin plugs*1
Pin Clamping Units for Temperature Rise Test
1. Introduction
The pin clamping units are designed according to AS/NZS 3112 figure 2.10 and clause 2.13.8 for plugs temperature rise test.
2. Specification
Material of clamping unit and clamping screw | Brass with at least 52% copper |
Quantity | 3 (Pin clamping unit for 10A and 15A flat pin plugs*1, Pin clamping unit for 10A round pin plugs *1, pin clamping unit for 20A flat pin plugs*1) |
Dimension | As per AS/NZS 3112 figure 2.10 |
Clamping screw | M3.5 |

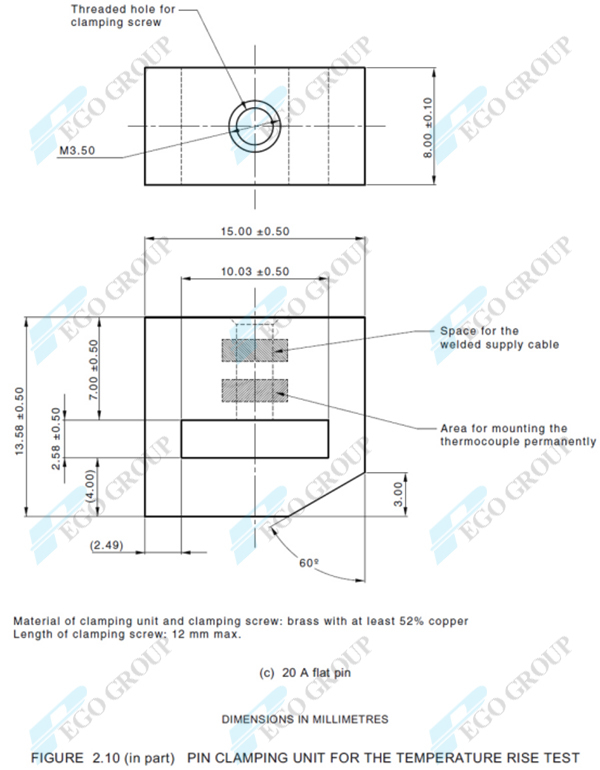

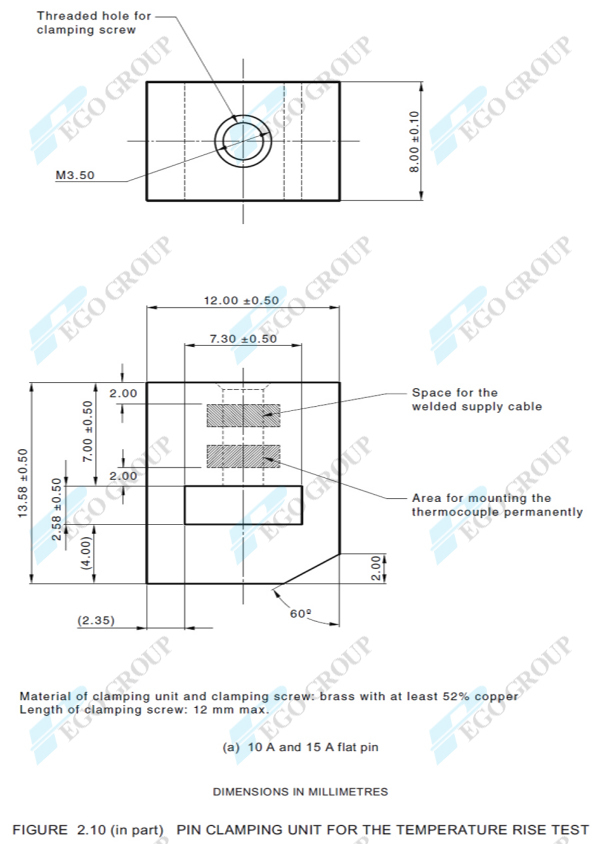

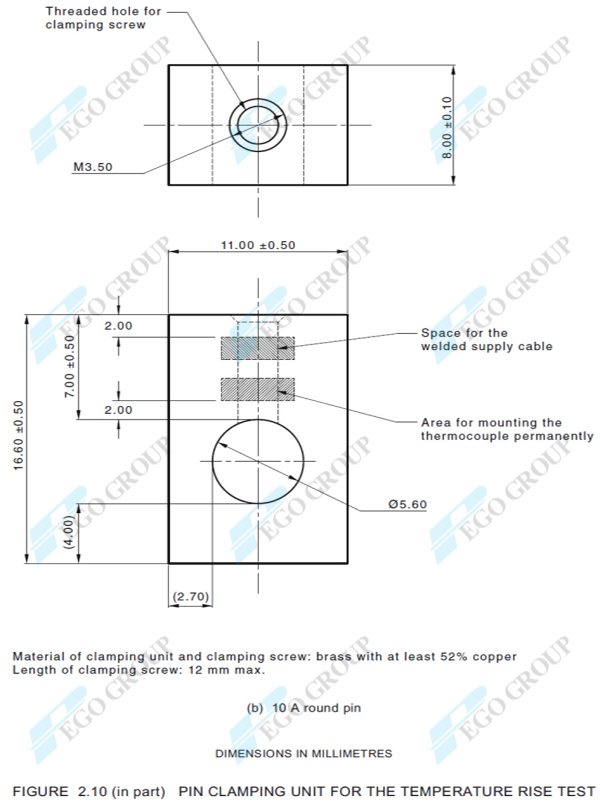

AS/NZS3112 Figure 2.10
![]() |
AS/NZS 3112 Figure 2.10 and Clause 2.13.8 Compliant Pin Clamping Units for Temperature Rise Test Images |
