IEC60335-2-17 Figure 112 Spark Ignition Test Apparatus For Testing Flame Resistance

Brand Name : Pego Group

Model Number : PG-SIT

Certification : Third-Lab Calibration Certificate

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets/months

Delivery Time : 15 working days

Packaging Details : woodencase

Standard : IEC60335-2-17 clause 30.101 and figure 112

Application : equipment for flexing heating elements and internal wiring

Test voltage : 5-12KV

Control mode : button control+meter

Working voltage : 220V/50Hz

Warranty : 12 months

Contact Now

IEC60335-2-17 Figure 112 Spark Ignition Test Apparatus for Testing Flame Resistance of Flexing Parts

1. Introduction

The spark ignition test apparatus meets the requirements of IEC60335-2-17 clause 30.101 and figure 112. It’s used for the flame resistance test of the flexible parts to check if the arcing of conductors will cause the sample to be overheated or burned. The test apparatus is consisted by control box and test rig, user should prepare the heating cabinet.

2. Parameters

Electrodes

1). Diameter: Ø3mm

2). Material: made of brass

3). Consist of a fixed electrode and a movable electrode, the angle of fixed electrode’s tip is 45°, the movable electrode has a flat end
Control way Button control+meter
Station Single
Test Voltage Voltage: 5-12KV
Test current 0-2mA max.the output voltage doesn’t decrease by more than 100V when a current of 1mA is following
Timer 0-999s
Dimension of upper mask 100*100*10mm (aperture: Ø50mm)
Dimension of lower mask 100*100*30mm (aperture: Ø50mm)
Mass of upper mask 100g
Adjustable platform 10mm-100mm (adjustable)
Dimension 650*500*1200mm
Power Supply 220V/50Hz

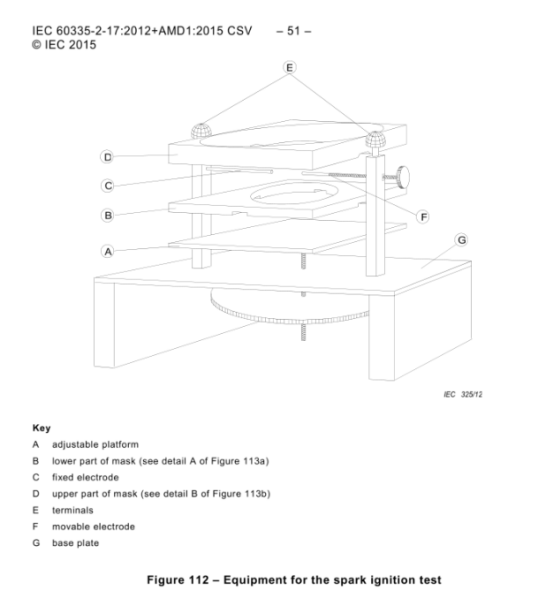

3. Drawings

IEC60335-2-17 Figure 112 Spark Ignition Test Apparatus For Testing Flame Resistance
