ISO20653 IPX9K Ingress Protection test chamber High Temperature High Pressure for Auto Parts
1. Introduction
IPX9K testing is the most strictly IP rating, it is applied to test all auto parts besides the passenger compartment. The reference standards includes ISO20653 and DIN40050-9.IPX9K fan jet and jet distribution for test device to verify protection against high pressure/steam jet cleaning. It is applied to electrical equipment in road vehicles, motors, electric components and auto parts to do the waterproof test. After the test, the user can judge if the performance of the product can meet the requirements or not, and then do the re-designing and improvement.
The Test chamber is controlled by touch screen and PLC, the test procedure can be observed via transparent viewing window, the water applied to test can be recycled, and the equipment has protection device if leakage, water break and short circuit.
2. Features
1). high-quality steel plate, coating with stoving varnish.
2). The chamber inner and support are made by SUS304# stainless steel.
3). Adopts 7 inch touch screen and PLC core control component, easy to operation and auto control.
4). Adopts high quality stepping motor, set the speed and angle by touch screen.
5). IPD temperature control, set the temperature by touch screen.
6). Test time: 0-999min adjustment, auto stop.
7). Communication function optional, can work with PC to save the data.
3. Specification
| Model | IPX9K |
| Inner size | L1000*D1000*H1000mm (depends on the specimen) |
| External size | L1400*D1180*H1850mm |
| Test time | 30S for each position |
| Jet angle | 0°30°60°90° |
| Numbers of jet | 4 |
| Diameter of turntable | 400mm |
| Lifting mode of turntable | Fixed type |
| Spray distance | 100-200mm (manual control) |
| Water pressure | 8000-10000Kpa |
| Water flow | 14～16L / min |
| Temperature | 250C (room temperature), 80±5℃ |
| Test time | 120s (30s/position) |
| Rotational Speed | 4～10r/min(adjustable) |
| Bear weight | 50kg |
| Protection device | Leakage, water break, short circuit |
| Power(V) | 380V/50Hz |
| Sample Power (V) | 220V |
| Power(KW) | 10 |
4. Picture:
5. Comparsion between test chamber and standard ISO20653
| Item | Standard requirement (ISO20653) | IPX9K test chamber |
| Temperature requirement | 80±5℃ | 250C (room temperature)~ 80±5℃ |
| Pressure requirement | 8000~10000Kpa | 8000-10000Kpa |
| Jet angle | 00, 300, 600, 900 | 0°30°60°90° |
| Quantity of nozzles | 4 | 4 |
| Turntable speed | 5±1r/min | 5r/min |
| Delivery rate | 4L/min~16L/min | 14～16L / min |
| Test time | 30s/angle *4 | 30S for each position |

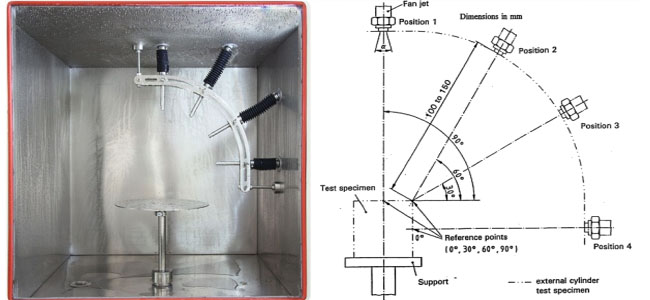

| schematic diagrams |  |  |
