Test Probe 11 Unjointed Test Finer Probe with 50N Thruster Conforms to IEC61032

Name: Test Probe 11 Unjointed Test Finer Probe with 50N Thruster Conforms to IEC61032
Brand: PEGO
Price: 450 USD

Test Probe 11 Unjointed Test Finer Probe with 50N Thruster Conforms to IEC61032 Manufactures

Brand Name : PEGO

Model Number : PG-TP11

Certification : Third-lab Calibration Certificate

Place of Origin : China

MOQ : 1set

Price : USD450-600/set

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 15 working days

Packaging Details : carton box

Standard : IEC61032, UL

Material : metal and insluating material

Shippment : by express

Force : 0~50N

Finger Diameter : 12mm

Finger Length : 80mm

Contact Now

Test Probe 11 Unjointed Test Finer Probe with 50N Thruster Conforms to IEC61032

1. Introduction of Test Probe 11:

The test probe 11 is designed according to IEC61032 figure 7 and UL clauses. This probe may be used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strength of openings in the enclosure or internal barriers.

2. Specification of Unjointed Test Finger Probe:

diameter of test finger	12mm
Length of test finger	80mm
Diameter of baffle	50mm
Thickness of baffle:	5mm
Strength range	10N, 20N, 30N,40N,50N
Material	insulating material, metal

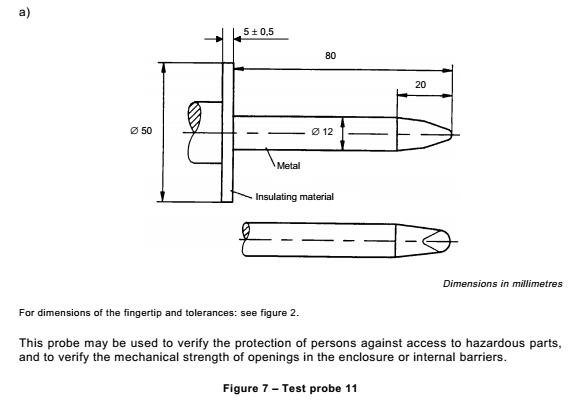

3. Picture of Test Probe 11:

Test Probe 11 Unjointed Test Finer Probe with 50N Thruster Conforms to IEC61032

4. Probe List:

Probes and application	Probe code	Short description	Force to be applied
Access probes of IEC60529 (IP code)	Probe A	Sphere:Φ50 with handle	50
	Probe B	Jointed test finger	10
	Probe C	Rod: Φ2.5-length 100	3
	Probe D	Wire: Φ1.0-length 100	1
Object probes of IEC60529 (IP code)	Probe 1	Sphere: Φ50	50
Object probes of IEC60529 (IP code)	Probe 2	Sphere: Φ12.5	30
Other access probes Persons against access to hazardous live parts or hazardous mechanical parts	Probe 11	Unjointed test finger	50
	Probe 12	Cylindrical pin: Φ4-length 50
	Probe 13	Conincal pin: Φ3 to 4-length 15
	Probe 14	Bar: 3*1	20
	Probe 15	Deleted
	Probe 16	Deleted
	Probe 17	Wire: Φ0.5
	Probe 18	Small finger probe: Φ8.6-length 57.9	10
	Probe 19	Small finger probe: Φ5.6-length 44	10
Other access probes Persons against access to hazardous mechanical parts	Probe 31	Cone: Φ110/60	50
	Probe 32	Rod: Φ 25	30
	Probe 33	Delected
Other access probes Persons against access to hot or glowing parts	Probe 41	Probe: Φ 30
	Probe 42	Deleted
	Probe 43	Bar: 50*5
