Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere

Name: Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere
Brand: PEGO
Price: 450 USD

Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere Manufactures

Brand Name : PEGO

Model Number : PG-TPA

Certification : Third-lab Calibration Certificate

Place of Origin : China

MOQ : 1set

Price : USD450-600/set

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 15 working days

Packaging Details : carton box

Standard : IEC61032, IEC60529

Material : metal and insluating material

Application : accessible probe

Force applied : 10N, 20N, 30N, 40N, 50N

Condition : new

Shippment : by express

Contact Now

IEC61032 Test Finger Probe Test Probe A 50mm Sphere with Handle

Introduction:

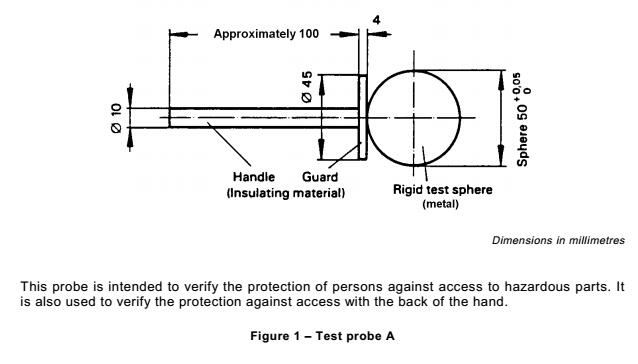

Designed according to IEC61032 fig.1, and meet the requirements of IEC60529 regarding IP1X testing and IEC60065. This probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with the back of the hand.

Specification:

Diameter of test sphere:	50mm	Diameter of baffle:	50mm
Thickness of baffle:	4mm	Diameter of handle:	10mm
Length of handle:	100mm
Material: insulating material (handle and baffle), metal (test sphere)
Force applied: 50N thruster for optional

Picture:

Portable Test Finger Probe 100 Millimeter Length With Handle 50 Mm Sphere
